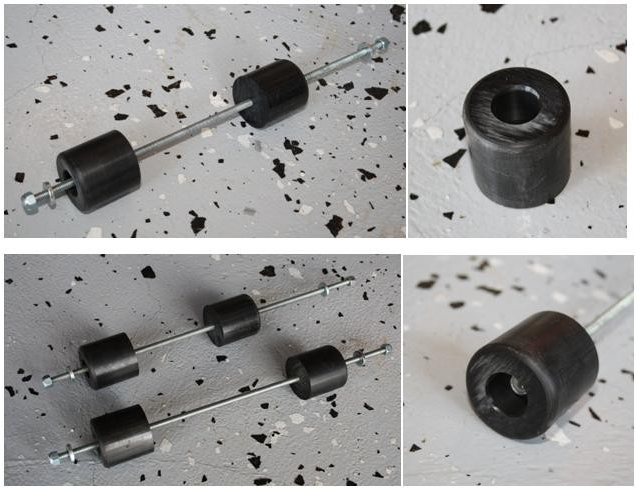

Sliders are made out of 1.75” diameter Delrin and 1/4-20 threaded rod. The sliders are counter-bored to fit the 1/4-20 nut and a heavy washer. The threaded rod is cut to 13” long so it will have to be cut to length to fit your bike.
Universal sliders Price:
Single axle: $20
2 Axles: $35
Replacement sliders $5 each
All prices plus a flat rate shipping charge of $20. If you are in or around Kitchener/ Cambridge Ontario you can pick them up to save the cost of shipping
Example: Universal 2 Axle kit with shipping $55
If interested please email me jerrettbellamy@gmail.com
Click read more for more...

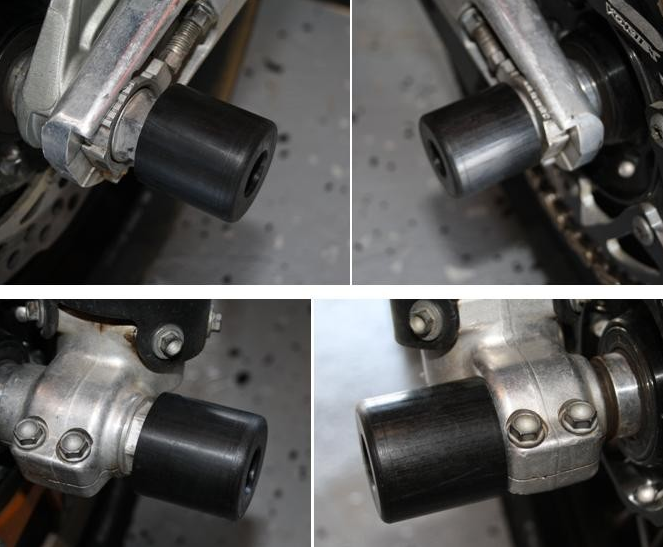

Here is an example of the universal fit sliders on my 2004 KTM 450
Mounting instructions
1. Screw the nut onto one end of the threaded rod
2. Slide the washer and slider onto the end with the nut then slide through the axle
3. Put the opposite side slider onto the threaded rod and pull them tight. Mark the threaded rod inside the slider where you will need to cut it.
4. Cut and re-assemble
Custom Fit Axle SlidersIf you want a little nicer fit I can custom machine the mating surfaces of the sliders to fit over axle nuts or into axles. You will need to email me your brand of bike and a picture of each side of your front and rear axles along with dimensions of the features for each side. I have made up a custom fit slier order form here to better outline the required dimensions. Download it here: Custom Axle Slider Order Form
Mounting instructions
1. Screw the nut onto one end of the threaded rod
2. Slide the washer and slider onto the end with the nut then slide through the axle
3. Put the opposite side slider onto the threaded rod and pull them tight. Mark the threaded rod inside the slider where you will need to cut it.
4. Cut and re-assemble
Custom Fit Axle SlidersIf you want a little nicer fit I can custom machine the mating surfaces of the sliders to fit over axle nuts or into axles. You will need to email me your brand of bike and a picture of each side of your front and rear axles along with dimensions of the features for each side. I have made up a custom fit slier order form here to better outline the required dimensions. Download it here: Custom Axle Slider Order Form
If you have a modern KTM (530 and smaller) I have the dimensions already.
List of bikes I have measurements for already
Custom Axle Slider Pricing
Single axle: $30
2 Axle kit: $55
Replacement sliders $10 each
All prices plus a flat rate shipping charge of $20. If you are in the Kitchener Ontario or will be attending any Supermoto Ontario events you can pick them up to save the cost of shipping
Example: Custom 2 axle kit total with shipping $75
If interested please email me jerrettbellamy@gmail.com

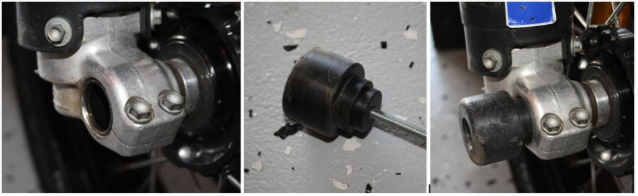

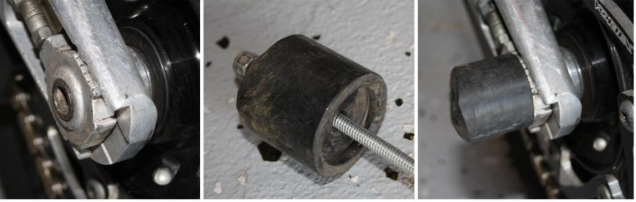

Here are pictures showing the custom fit on my 2004 KTM 450. Excuse the pictures - the sliders are old and dirty and have been crashed a number of times...
List of bikes I have measurements for already
Custom Axle Slider Pricing
Single axle: $30
2 Axle kit: $55
Replacement sliders $10 each
All prices plus a flat rate shipping charge of $20. If you are in the Kitchener Ontario or will be attending any Supermoto Ontario events you can pick them up to save the cost of shipping
Example: Custom 2 axle kit total with shipping $75
If interested please email me jerrettbellamy@gmail.com
Here are pictures showing the custom fit on my 2004 KTM 450. Excuse the pictures - the sliders are old and dirty and have been crashed a number of times...
